Diagnosing and Repairing Inkjet Printhead Failures

Inkjet printers can produce crisp text and vibrant colour, but when the printhead starts to fail, the quality drops fast. You’ll notice missing lines, faded patches, or colours that simply vanish mid-page. The situation is frustrating, especially since it may not be as simple as low ink. Printhead issues are mechanical, chemical, and sometimes even electronic—and knowing which you’re facing makes all the difference between a quick fix and a dead printer.

So, let’s take a closer look at what causes inkjet printhead failures, how to diagnose them properly, and when it’s smarter to call a professional repair service.

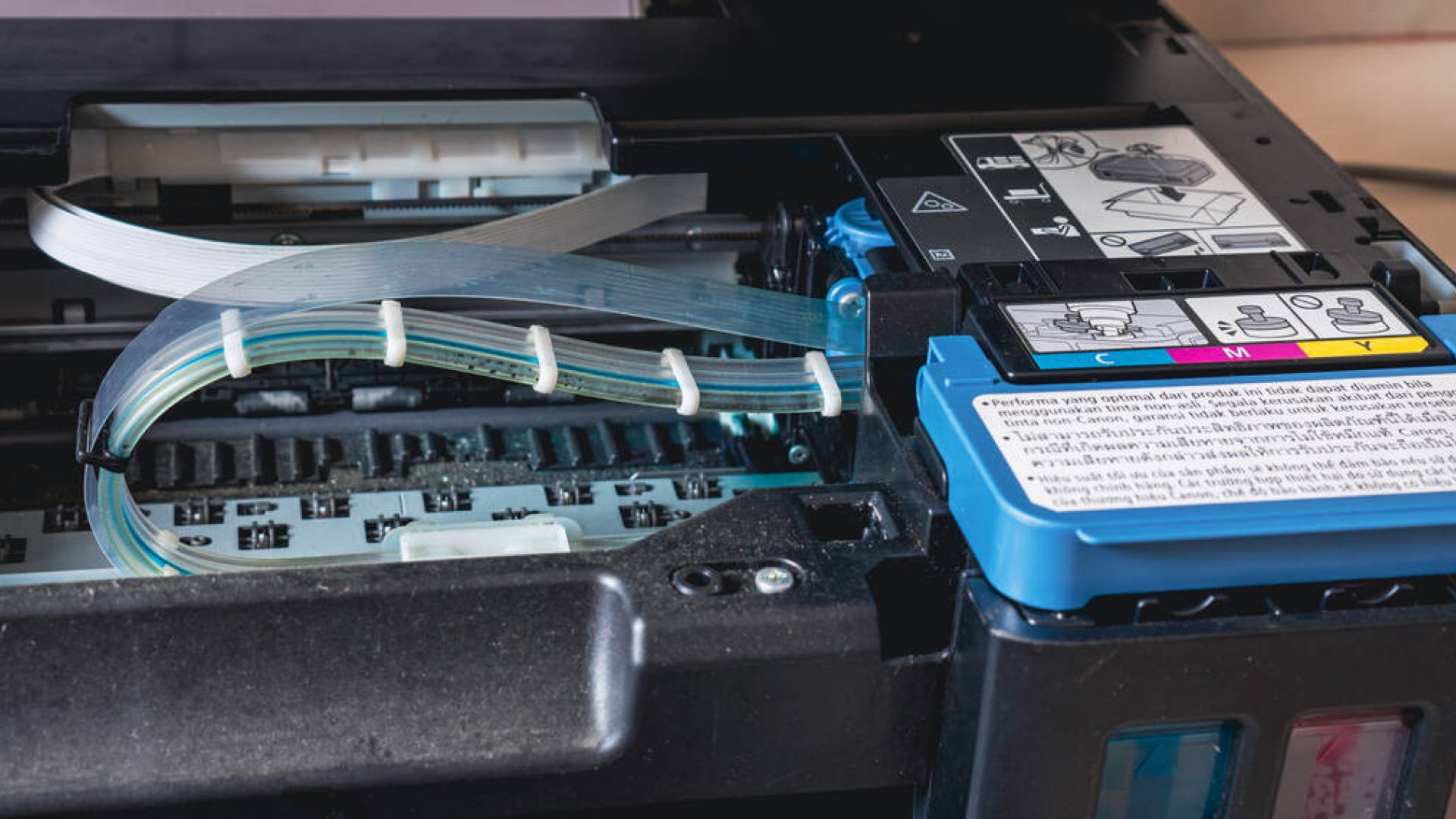

What Exactly Is a Printhead?

Think of the printhead as the printer’s brain and fingertips rolled into one. It’s the part that actually places microscopic droplets of ink onto the page. Inside, hundreds (sometimes thousands) of tiny nozzles spray ink with mind-boggling accuracy—down to fractions of a millimetre.

Different brands handle this differently. In many HP and Canon printers, the printhead is part of the cartridge itself—meaning when you change the cartridge, you’re also getting a fresh head. But Epson and some Brother models use permanent printheads built into the printer. They’re more precise but also more delicate. If something goes wrong, you can’t just toss and replace; they require careful cleaning or professional servicing.

Common Signs: How Do I Know if My Printhead is Bad?

Before a full breakdown, your printer often sends out little warning signs. Catching them early can save you both ink and nerves.

1. Missing or broken lines – Text looks striped, or images have gaps. That’s a telltale sign of clogged nozzles.
2. Faded or patchy colours – A weak or uneven colour output might mean the ink isn’t reaching the page properly.
3. Incorrect colours – Blue where red should be or muddy brown where black belongs often signal ink contamination or nozzle misalignment, or that your printhead alignment failed.
4. Completely blank pages – The printer is “working” but nothing appears on paper—often due to dried ink blocking every nozzle or a disconnected printhead.
5. Error messages – Many printers display specific error codes like “Printhead problem,” “Printhead missing, failed, or incompatible,” or “Maintenance required.”

Of course, these issues don’t always mean your printhead is toast. Sometimes it’s just dried ink. Sometimes it’s dirt. The trick is knowing what’s what.

Why Printheads Fail: HP 8600 Issues and More

Inkjet technology is built on consistency—ink must flow freely, evenly, and cleanly. Once that flow gets disrupted, everything falls apart. Here’s what usually goes wrong:

• Dried Ink: If a printer sits idle for weeks, the ink inside the nozzles can dry and form a solid plug. Even a tiny blockage can disrupt the spray pattern.
• Contaminated or Cheap Ink: Refilling cartridges or using third-party ink can introduce air bubbles, dust, or inconsistent viscosity that damages the nozzles over time.
• Electrical Faults: Each nozzle is controlled by a microcircuit. Voltage spikes, static, or simple wear can fry these circuits.
• Physical Damage: Overzealous cleaning or rough cartridge swaps can bend or scratch the printhead’s surface. Once that happens, print quality never really recovers.
• Overuse: After tens of thousands of prints, printheads naturally degrade. They’re not designed to last forever, though regular maintenance can stretch their lifespan.
• Usage patterns – Roughly 30% of printhead failures in office / industrial settings were caused by factors such as paper type, printing frequency and micro-electronic malfunctions.

Step-by-Step: Diagnosing Printhead Problems

Before rushing to replace your printer, it’s worth testing the printhead properly. Most modern inkjets come with built-in diagnostic tools that make the process easier.

1. Run a Nozzle Check
   Open your printer software and select “Nozzle Check” or “Print Quality Report.” This prints a pattern of coloured grids or lines. Missing sections instantly reveal which colour or nozzle group is blocked.
2. Inspect the Ink Cartridges
   Take them out and look for dried ink or residue on the contacts. If the ink levels are fine but output is weak, the problem’s likely deeper—inside the head.
3. Try a Printhead Cleaning Cycle
   Run your printer’s automatic printhead cleaning process. It forces ink through the nozzles to push out dried bits. If the first run doesn’t help, try one more. Don’t go overboard; too many cleanings waste a ton of ink and can flood the waste pads.
4. Manual Cleaning (When Safe)
   If the automatic method fails, manual cleaning may help. Use a lint-free cloth dampened with distilled water or a specialised cleaning solution. Gently dab the printhead area—never scrub. Let it dry fully before reinstalling.
5. Run Another Test Print
   After cleaning, run another nozzle check. If improvement is visible, repeat one more cleaning cycle. If it’s identical or worse, the printhead might be electronically damaged.

When Cleaning Doesn’t Work

If you’ve run multiple cleanings, checked the cartridges, and still get blank or streaked pages, it’s probably time to stop.

• Burned-out nozzles: Constant heating wears them out. Once they burn, they can’t eject ink anymore.
• Corroded contacts: Ink or moisture may corrode the gold contacts between the printhead and printer.
• Faulty electronics: Internal sensors or circuits can fail, particularly after power surges or extended use.

If your screen reads “Printhead missing, failed or incompatible,” no cleaning cycle can fix this. In fact, pushing too far can cause more damage, especially if the ink starts leaking where it shouldn’t.

Can You Fix a Printhead? When to Repair vs. Replace

Yes, printheads sometimes can be repaired. But it depends heavily on the model.

For printers where the printhead is integrated into the cartridge (HP DeskJet, Canon PIXMA, etc.), the fix is usually as simple as replacing the entire cartridge. It’s faster and cheaper than restoring the old one.

If it’s a built-in printhead (Epson or Brother style), things get trickier. These can sometimes be restored with ultrasonic cleaning—a process that uses microscopic vibrations in a special solution to remove dried ink and debris. It’s delicate, but it works wonders in skilled hands. That said, don’t try to replicate this at home with alcohol or DIY solutions. You’ll likely dissolve seals or short-circuit the head completely. Leave this one to the pros.

Preventing Future Printhead Failures

A little prevention saves a lot of frustration. Try these simple habits to extend your printer’s lifespan:

• Print at least once a week. Idle printers are significantly more likely to develop printhead issues, so doing at least a small colour test page once a week helps keep ink flowing and prevents clogs.
• Stick to genuine ink. The formula matters—cheap alternatives often thicken or separate.
• Keep your printer covered. Dust loves to settle in nozzles.
• Run maintenance cycles monthly. These light cleanings keep the printhead in good shape.
• Power down properly. Don’t pull the plug; use the power button. That parks the printhead safely.

Neglect these, and the printhead might not fail tomorrow, but its lifespan will shrink dramatically.

When to Call a Professional

Here’s the point where you stop guessing. If you’ve tried cleaning cycles, manual wipes, cartridge swaps, and the printer still spits out patchy or blank pages, it’s time for expert help.

Inkjet printhead failures can seem unpredictable, but the warning signs are usually there—faded prints, missing lines, odd colours. Understanding how your printhead works and knowing when to clean, replace, or call in a technician saves time and frustration.

Many users are surprised by how often a thorough professional cleaning revives what seemed like a dead printer. And it’s usually far cheaper than buying a new one. Their years of experience with consumer and commercial printers mean you’ll get a clear answer—and a working printer again, without the guesswork.
